HMS 66

HMS 66
HMS 66 (Heavy Duty Sack Sealer) *Stand Kit sold separately*
Maximum Sealing Length/Time660mm (26”), 910mm (36") / 4-10 Seconds
Seal Width6mm (Wide Seal), 8mm or 12mm (Special)
Material Thickness (for weld)1000µm – 4000g (Approx.)
Voltage240V (50Hz, single phase), 110V (Conversion)
Power Consumption (Watts) Weld 1730W, Cool – 250W, Standby – 25W
Fuse Rating10 Amp
Footprint (Without Stand)410mm (L) x 550mm (W) x 200mm (H) – 100mm (Throat)
Weight26-52kg (Approx.)
OperationFoot Operated (via a Pad Switch), Remote Control Operated (for hostile environments)
MountingBench Mounted, Tripod Stand
Options8mm or 12mm (Special Seal Width), Foot Switch activated (Shrouded Pedal option), Adjustable Height (Optional Sack Support), Pneumatic Operation Stand
FinishPowder Coated Mild Steel or Stainless Steel

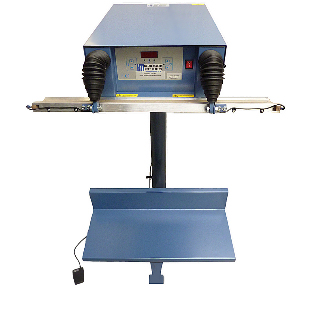

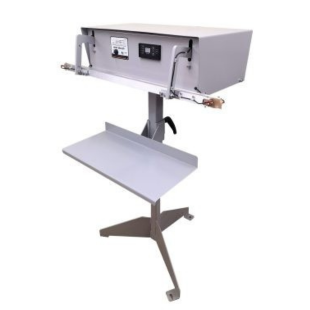

The HMS 66 (Heavy Duty Sack Sealer)
Part No. S6602052


Ideal for sealing Chemicals, Compost, Sawdust, Manure, Resins

Ballast & Coal. Industrial quality, foot operated

& manufactured within the UK.


The HMS 66 free standing Sack Sealer* is designed for sealing bags when the product is best sealed standing upright.
Typically this lends itself to the bag sealing of bulk product such as aggregates, prepared foods & chemicals.

This industrial quality bag sealer comes in a range of formats to suit your product, working environment & bag type.

Foot Switch initiated & with Solenoid Jaw operation, allows the operator to be preparing the next bag, whilst one is being sealed!

For more hostile & food environments, Stainless Steel machines (up to IP65 rating) can be built.

Constant heat jaws for heavy weight foil & multi-wall paper bags are also available.

For applications where seal quality is paramount, such as hygroscopic compounds, a PLC controller can be fitted.

All  Hulme Martin machines are manufactured in the UK to a high industrial quality.


*Stand Kit sold separately*
